• OPTIC.CA - 1000BASE-CWDM SFP - SFP-504-CWxx-OC - GIGAMON COMPATIBLE
1 1

Technologie Optic.ca Inc.

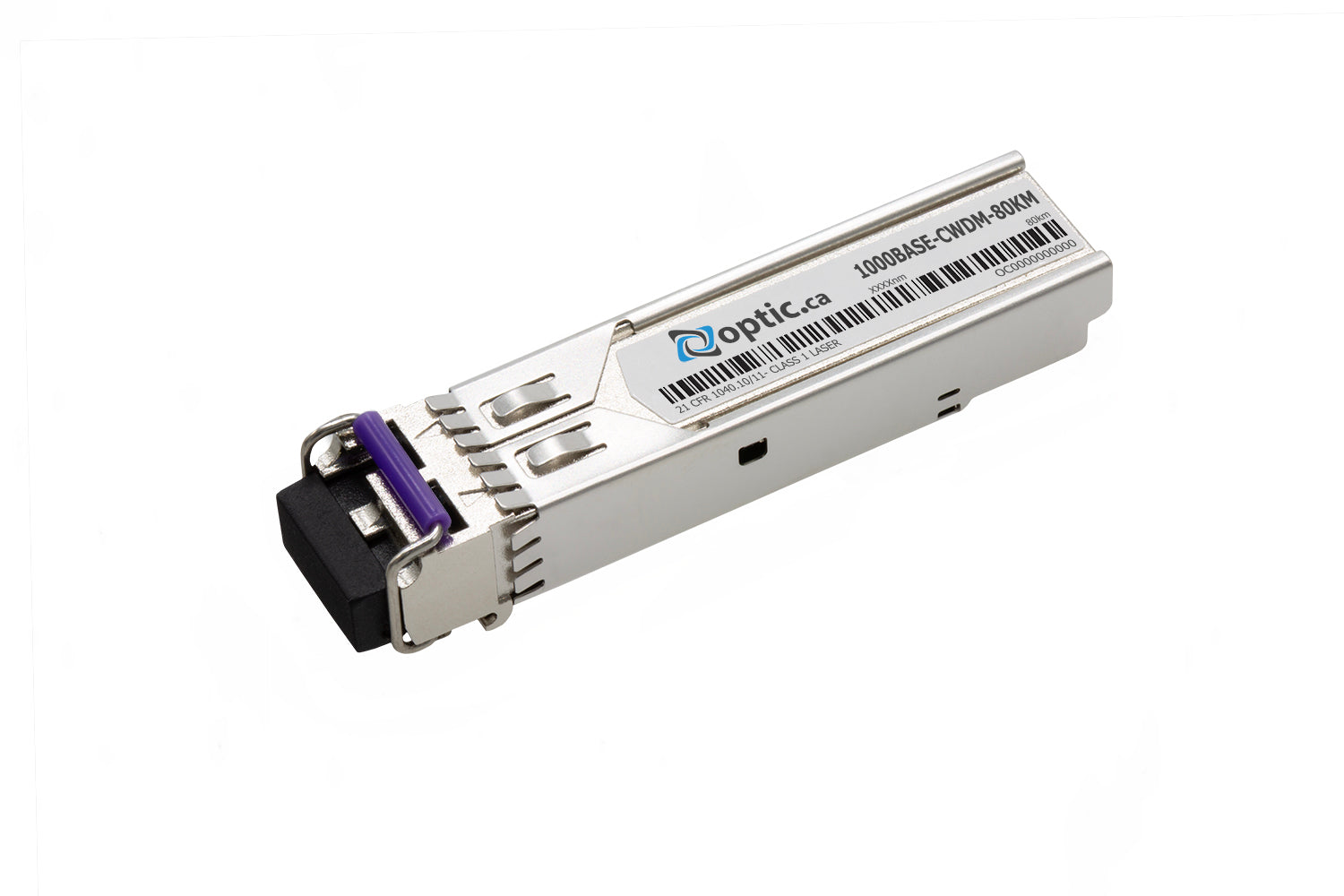

1000BASE-CWDM SFP, 1270NM - 1610NM, 80KM, SMF, DDM, 100% GIGAMON COMPATIBLE

Wavelengths
100% Gigamon® compatible 1000BASE-CWDM optical transceiver, engineered to deliver 1G speeds at a maximum distance of 80km over Single-mode fiber. Uses a LC UPC connector and features Digital Diagnostic Monitoring (DDM) capabilities.

It uses Coarse Wavelength Division Multiplexing (CWDM) to transmit in the 1270 to 1610nm wavelength range, allowing multiple data streams to be transmitted over different light wavelengths through a single fiber.


Item Attributes
Compatible Brand Gigamon®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Available CWDM channels 1270nm to 1610nm
Data Rate 1000BASE - 1 Gbps
Form factor SFP
Max Reach 80km
Connector Type LC UPC
DDM Yes
Transceiver Type CWDM
TX Optical Power 0dBm to 5dBm
RX Sensitivity -23dBm
View full details

  • In-House Coding

    At Technologie Optic.ca, we code and test all our transceivers to be 100% compatible in their intended target application. Today, the fiber-optic networking landscape is littered with “compatible” transceiver companies. Optic.ca was one of the first companies to design and distribute OEM Compatible transceivers in Canada.  We now design solutions for almost every equipment in the world.

  • Trust

    Our MTBF figures meet or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure seamless integration with a wide range of networking equipment. By adhering to industry benchmarks, our compatible transceivers deliver the same or better performance and reliability as OEM units.

  • Warranty

    Backed by our life time warranty* and commitment to excellence and customer satisfaction, our compatible transceivers provide a dependable and efficient solution for your network needs.
