Technologie Optic.ca Inc.

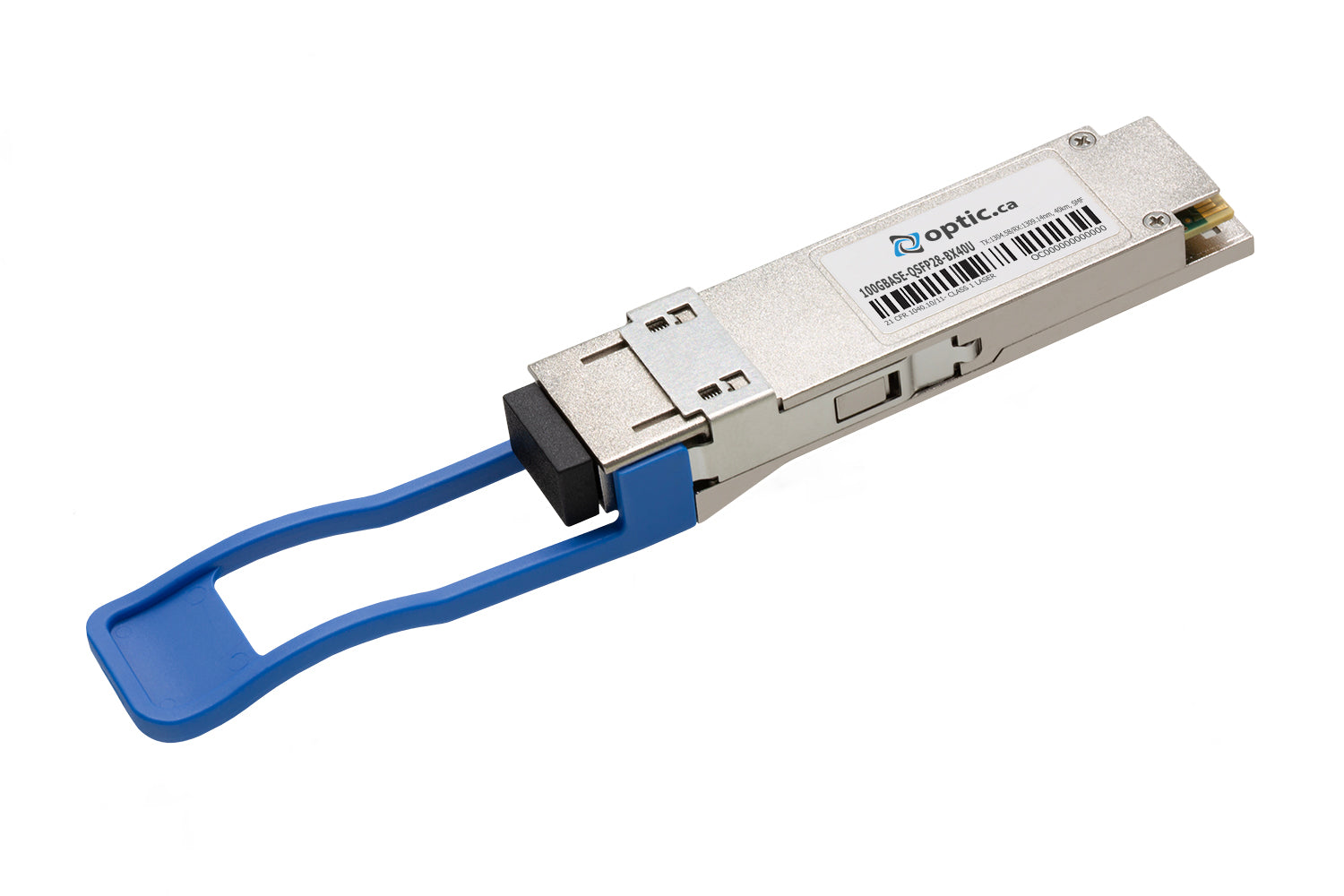

100GBASE-QSFP28 BIDI-U TX:1304.58NM, RX:1309.14NM, 40KM, SMF, 100% ARISTA COMPATIBLE

100% Arista® compatible 100GBASE-QSFP28-BX upstream optical transceiver provides 100G speeds over a distance of up to 40km over Single-Mode simplex fiber. It transmits over a wavelength of 1304.58nmTx / 1309.14nmRx using a LC UPC connector. It must be paired with compatible downstream transceiver of compatible wavelengths.

Our transceivers are engineered and custom coded to meet or exceed OEM technical specifications. Features built-in DDM (Digital Diagnostic Monitoring) and is covered by a lifetime warranty.

Item Attributes
Compatible Brand Arista®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 1 Fiber / Simplex
Wavelength TX: 1304.58nm / RX: 1309.14nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 40km
Connector Type LC UPC
DDM Yes
Transceiver Type BX
TX Optical Power 0dBm to 5.6dBm
RX Sensitivity -12.5dBm
View full details

  • In-House Coding

    At Technologie Optic.ca, we code and test all our transceivers to be 100% compatible in their intended target application. Today, the fiber-optic networking landscape is littered with “compatible” transceiver companies. Optic.ca was one of the first companies to design and distribute OEM Compatible transceivers in Canada.  We now design solutions for almost every equipment in the world.

  • Trust

    Our MTBF figures meet or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure seamless integration with a wide range of networking equipment. By adhering to industry benchmarks, our compatible transceivers deliver the same or better performance and reliability as OEM units.

  • Warranty

    Backed by our life time warranty* and commitment to excellence and customer satisfaction, our compatible transceivers provide a dependable and efficient solution for your network needs.
