• OPTIC.CA - 100GBASE-PSM4 QSFP28 - F5-UPG-QSFP28-PSM4-OC - F5 NETWORKS COMPATIBLE
1 1

Technologie Optic.ca Inc.

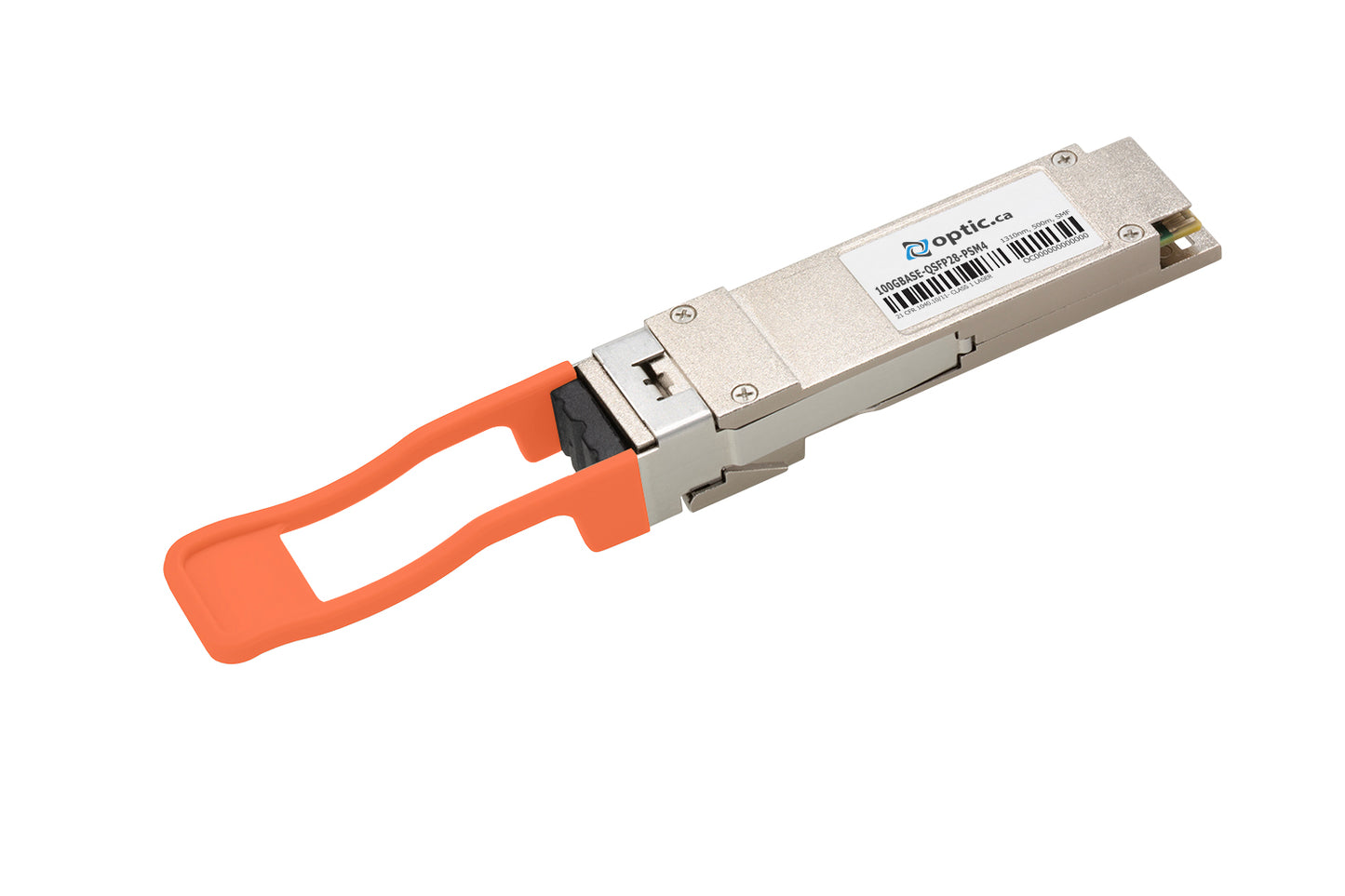

100GBASE-PSM4 QSFP28, 1310NM, 500M, SMF - PARALLEL, MPO-12 APC, 100% F5 NETWORKS COMPATIBLE

100% F5 Networks® compatible 100GBASE-PSM4 optical transceiver provides link speeds of 100G to meet your high-speed networking needs. It uses a MPO APC connector to transmit to a distance of up to 500m over Single-Mode fiber.

It can be used in 4 x 25G breakout mode for interoperability with 25GBASE-LR, up to 500M. The same forward error correction (FEC) mode must be used at both ends for the link to work.

Item Attributes
Compatible Brand F5 Networks®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 12 Fibers
Wavelength 1310nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 500m
Connector Type MPO-12 APC Male
DDM Yes
Transceiver Type PSM4
TX Optical Power -8dBm to 2dBm (Per Lane)
RX Sensitivity -11.5dBm (Per Lane)
View full details

  • In-House Coding

    At Technologie Optic.ca, we code and test all our transceivers to be 100% compatible in their intended target application. Today, the fiber-optic networking landscape is littered with “compatible” transceiver companies. Optic.ca was one of the first companies to design and distribute OEM Compatible transceivers in Canada.  We now design solutions for almost every equipment in the world.

  • Trust

    Our MTBF figures meet or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure seamless integration with a wide range of networking equipment. By adhering to industry benchmarks, our compatible transceivers deliver the same or better performance and reliability as OEM units.

  • Warranty

    Backed by our life time warranty* and commitment to excellence and customer satisfaction, our compatible transceivers provide a dependable and efficient solution for your network needs.
